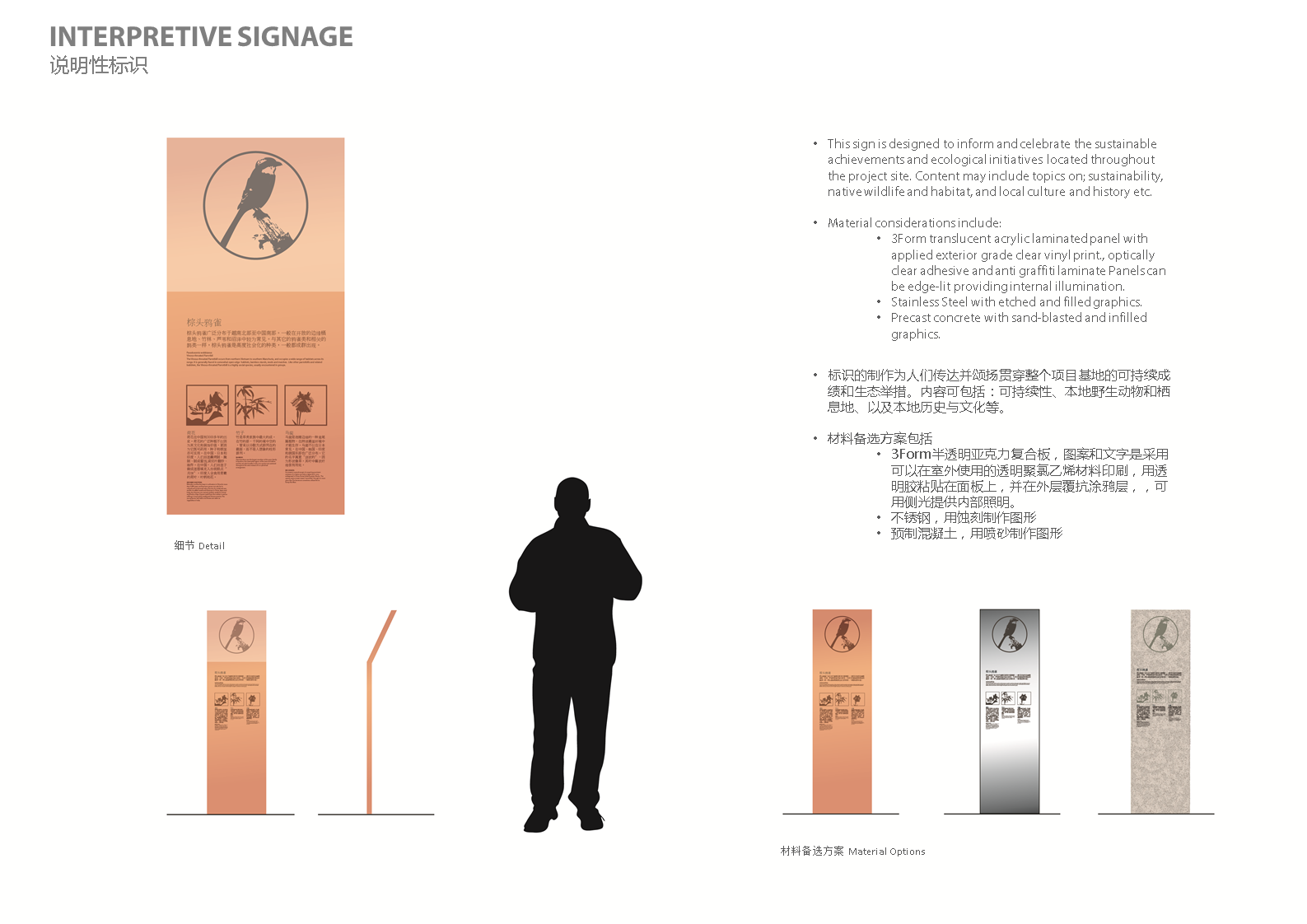

The Interpretive Signage is designed to inform and celebrate the sustainable achievements and ecological initiatives located throughout the project site. Content may include topics on; sustainability, native wildlife and habitat, and local culture and history.

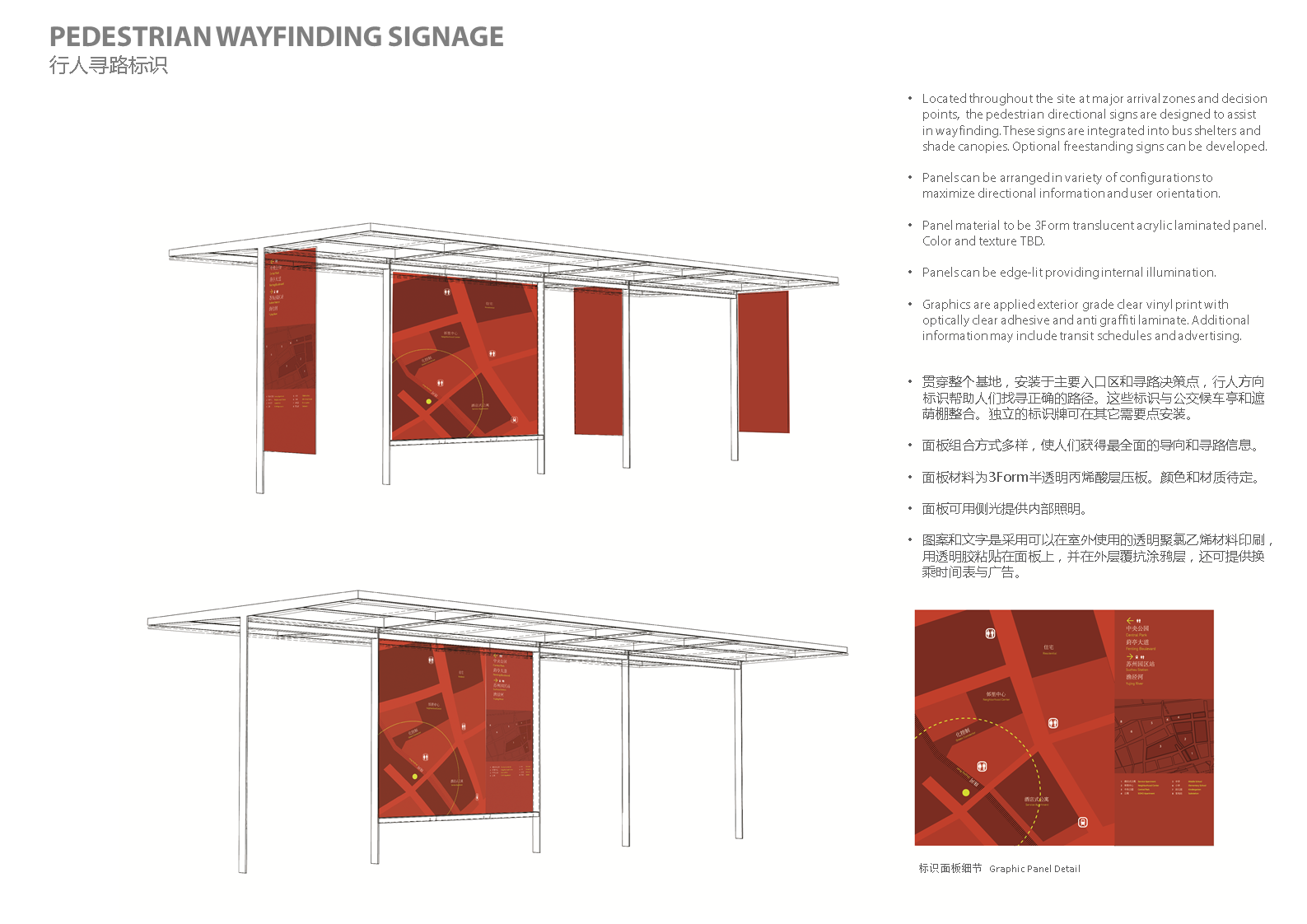

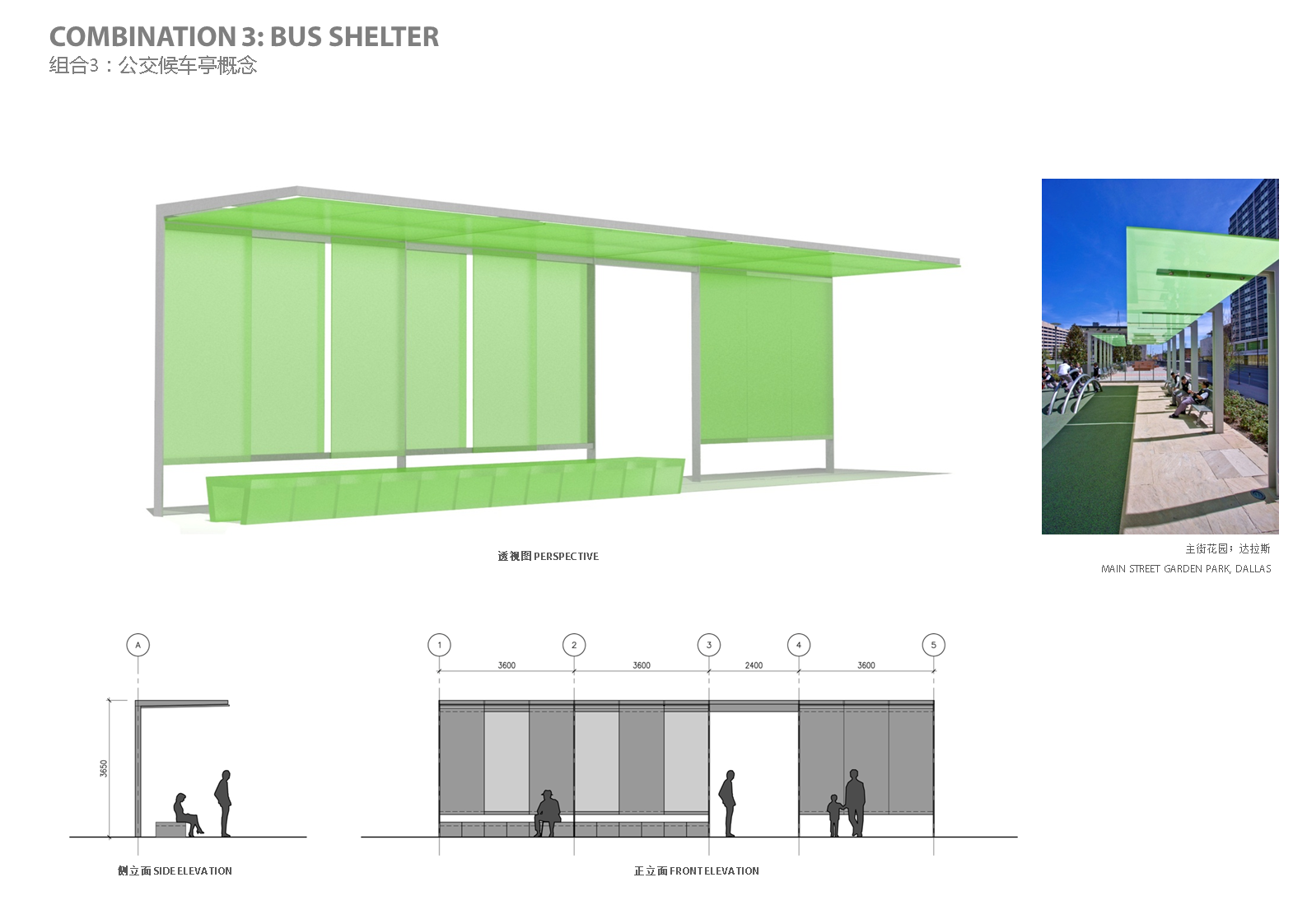

The pedestrian directional signs are located throughout the site at major arrival zones and decision points, the pedestrian signs are designed to assist in wayfinding. These signs are integrated into bus shelters and shade canopies. Panels can be arranged in variety of configurations to maximise directional information and user orientation. Panel material to be 3Form translucent acrylic laminated panel. Panels can be edge-lit providing internal illumination. Graphics are applied exterior grade clear vinyl print with optically clear adhesive and anti graffiti laminate. Additional information may include transit schedules and advertising. Designed at Sasaki Associates.
